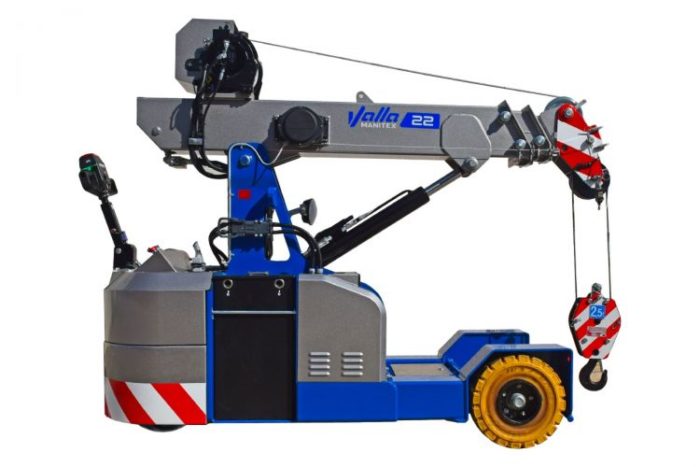

22 E | Zwaargoed Elektrische kranen, hoogwerkers en verreikers
Zwaargoed

22 E

Terug naar alle machines

Vraag prijs / offerte op

    22 E

    Terug naar alle machines

    Levertijd in overleg



    100% elektrisch = zero emission

    Zeer compact, ideaal in kleine ruimtes

    Binnen en buiten gebruik

    Original Pick & Carry Cranes

    Specificaties

    Payload

    Max 2,2 Ton

    Chassis

    3 wheels structure made in high quality steel, with internal counterweights and rear removable counterweight, for maintenance purposes

    Wheels

    Nr. 1 rear cushion 305×135 e Nr. 2 front 18×7-R8 superelastic

    Traction

    Rear traction with electric engine AC – 3 kW controlled by inverter, electro magnetic control on disk brake

    Hydraulic system

    Powered by AC – 4kW electric pump (5kW with hydraulic winch)

    Brakes

    On the rear wheel by electric brake

    Steering

    By 180° steering helm. Steering 700W 48V electric motor electronically controlled. Complete with safety device on backward

    Boom

    Manufactured in high quality steel, composed by three elements: main boom and two telescopic hydraulic sections with two positions tilting head cylinder fitted with nylon wear pads. Adjustable wear pads on the sides

    Battery

    Traction 48V-200Ah. Indicator light for the state of charge

    Controls

    Traction: through advance helm
    Aerial part: through wire control

    Security (LMI)

    Electronic Load Moment Indicator. Display showing lifted load, max allowed load, tilting percentage, operating radius, angle, telescope and light indicators on the operative mode

    Weight

    2.000 kg

    Opties

    Hydraulic winch, manual Jib, radio remote control, non marking wheels, battery watering system, on board battery charger, carry deck, front wheels electro brakes

    Documenten

    Brochure
