400 E | Zwaargoed Elektrische kranen, hoogwerkers en verreikers

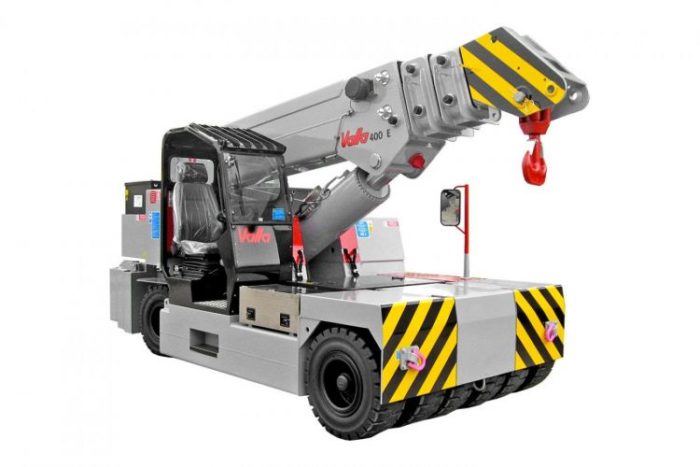

Zwaargoed

400 E

Terug naar alle machines

Vraag prijs / offerte op

    400 E

    Terug naar alle machines

    Levertijd in overleg



    100% elektrisch = zero emission

    Zeer compact, ideaal in kleine ruimtes

    Binnen en buiten gebruik

    Original Pick & Carry Cranes

    Specificaties

    Payload

    Max 90 ton

    Chassis

    Supporting structure made of steel

    Ballast

    Removable n ° 4 of 3,250 kg each.

    Wheels

    Front tire 6 cushion 840×320
    Rear tires nr ° 2 from 400 / 60-15 “

    Traction

    Rear with electrically powered oscillating differential 48kW 96V engine

    Hydraulic system

    Max pressure 250 bar with 26kW 96V motor

    Brakes

    Electro-hydraulic on 4 front wheels and 2 rear wheels

    Steering

    Rear 160 ° dedicated motor 20kW 96V pressure 120 bar

    Boom

    Made of high quality steel, composed of four elements: base arm and three telescopic sections with sequential hydraulic extension. Two-position tilting head as standard.

    Battery

    Removable from 96V 1250Ah with automatic topping up

    Controls

    Electro proportional joystick in the driving position

    Security (LMI)

    Electronic load limiting system with display for load and boom position display

    Weight

    45.000 / 32.000 kg (without ballast)

    Opties

    Traction / aerial part radio control, hydraulic winch, hydraulic swing jib, self-leveling hydraulic forks, closed cabin

    Documenten

    Brochure
