Direct leverbaar
100% elektrisch = zero emission
Zeer compact, ideaal in kleine ruimtes
Binnen en buiten gebruik

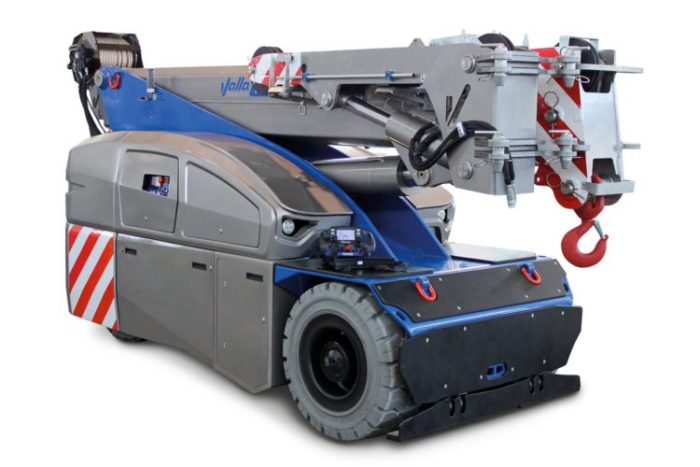

Original Pick & Carry Cranes
| Payload | Max 11 Ton |
| Chassis | Bearing structure made of steel with four wheels |
| Ballast | Nr° 2 removable counterweights of 2,100 kg each |
| Wheels | Nr° 2 front tires 355/65-15″ non-marking SE |
| Traction | Front with 2 motors AC of 6.5kW each |
| Hydraulic system | Max pressure 220 bar with AC motor of 12kW |
| Brakes | Front electro-hydraulic |
| Steering | Rear 180° |
| Boom | Made of high-quality steel, octagonal section consisting of three direct control telescopic elements with double cylinder. Four-position tilting head as standard. |
| Battery | 80V 640Ah with automatic topping up and charger on board |
| Controls | Radio control of traction / aerial part |
| Security (LMI) | Electronic load limiting system with display for load and boom position monitoring |
| Weight | 11,600 kg |
| Opties | Extendable wheelbase, front stabilizer bar, hydraulic winch, hydraulic swing jib, non-marking wheels, self-leveling hydraulic forks |
