Levertijd in overleg
100% elektrisch = zero emission
Zeer compact, ideaal in kleine ruimtes
Binnen en buiten gebruik

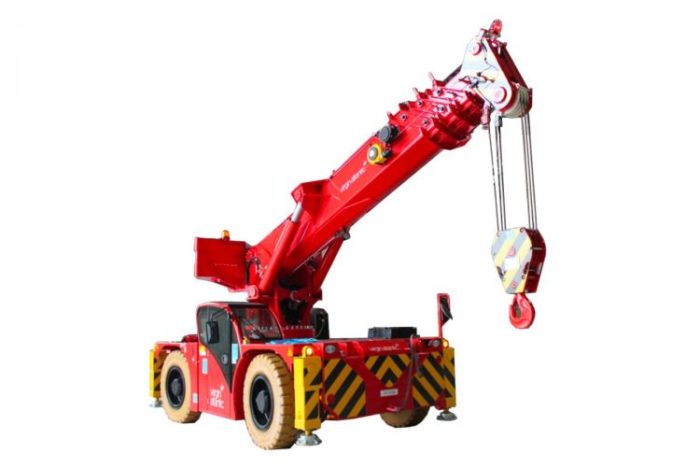

Original Pick & Carry Cranes
| Payload | Max 22 Ton |
| Chassis | Supporting structure made of steel with four independent hydraulic stabilizers |
| Cabin | Compliant with FOPS standards (ISO 13000) |
| Traction | 2 engines of 30 kW AC |
| Transmission | Permanent integral hydrostatic on 4 wheels, 3 steering modes |
| Hydraulic system | Max pressure 280 bar. Gear pump, electric proportional distributor |
| Boom | Made of high quality steel, composed of four elements: base arm and three telescopic sections with sequential hydraulic extension. Two-position tilting head as standard. 360 ° continuous turret rotation |
| Battery | 1 battery 96 V 775 Ah |
| Controls | Traction: by pedals and steering wheel inside the cabin |
| Security (LMI) | Electronic load limiting system with display for load and boom position display |
| Weight | 21.800 kg |
| Opties | Traction / aerial part radio control, hydraulic winch, foldable hydraulic jib, anti-trace tracks, closed cabin |
| Documenten |
