Levertijd in overleg
100% elektrisch = zero emission
Zeer compact, ideaal in kleine ruimtes
Binnen en buiten gebruik

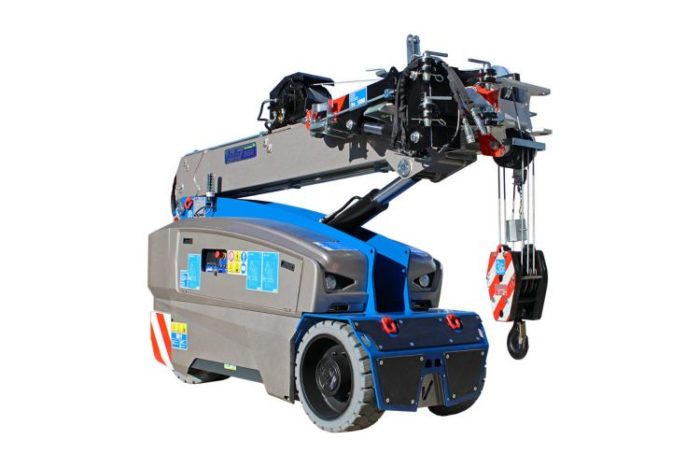

Original Pick & Carry Cranes
| Payload | Max 3,6 ton |
| Chassis | Bearing structure made of high-quality steel with four wheels |
| Ballast | Removable of 940 kg |
| Wheels | Nr. 2 Front tires cushion wheel 22x8x16 Nr. 2 Rear tires super wheel elastic 16×6-8” |
| Traction | N. 2 front with electric motors AC of 1,9kW controlled by inverter FOC |
| Hydraulic system | Max pressure 220 bar with AC motor of 8kW |
| Brakes | Front electro-brake |
| Steering | Rear +/- 90° |
| Boom | Made of high-quality steel, rectangular section consisting of three direct control telescopic elements with double cylinder. Two-position tilting head as standard |
| Battery | 80V 300Ah with automatic topping up and charger on board |
| Controls | Radio control of traction / aerial part |
| Security (LMI) | Electronic load limiting system with display for load and boom position monitoring |
| Weight | 3,650 kg |
| Opties | Hydraulic winch and hydraulic swing jib |
